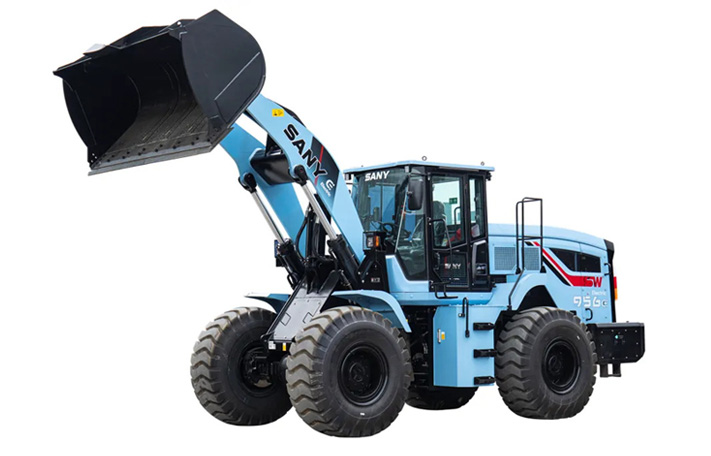

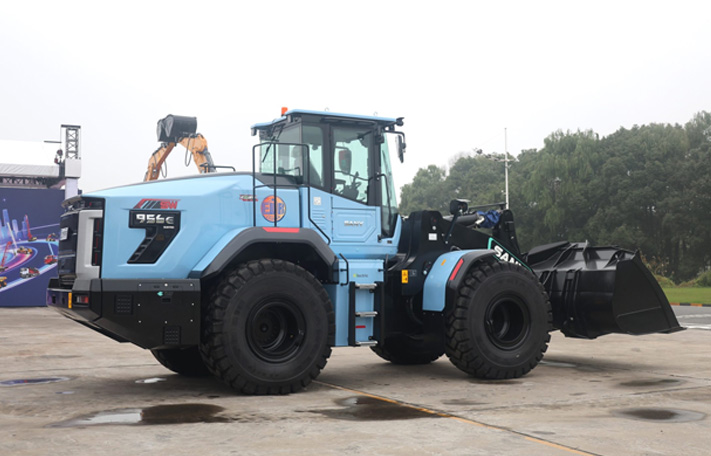

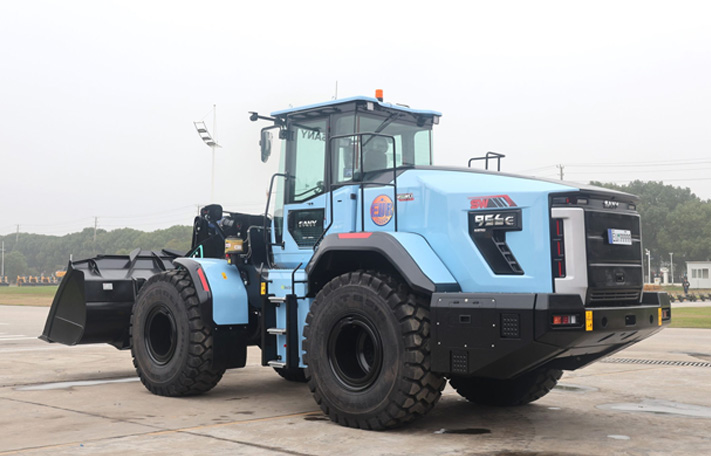

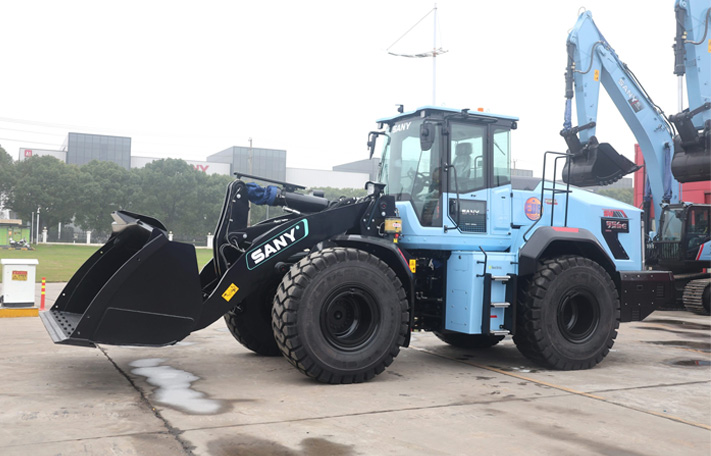

SW956E-Wheel Loaders
Kies Slim
Kies SANY
  • pro-dis-icon-01
    Class
    Wheel loader
  • pro-dis-icon-02
    Engine model
    CATL battery
  • pro-dis-icon-03
    Battery capacity
    350 kWh
  • pro-dis-icon-04
    Top speed
    40 km/h
  • pro-dis-icon-05
    Operating mass
    20 tonnes
TECHNICAL SPECIFICATIONS
Machine outputs
Breakout force 178  kN
Tipping load at full turn 13 200 kg
Tipping load straight 13 900 kg
Clearance (full 45° dump) 3000 mm

Traveling motor
Rated power 120 kW
Peak power 240 kW
Rated torque 1000 N.m
Peak torque 2400 N.m
Total steering angle 40°

Working motor
Rated power 80 kw
Peak power 160 kW
Rated torque 400 N.m
Peak torque 800 N.m

Transmission system
Gearbox Electric drive box
Shift modes AMT
STANDARD EQUIPMENT
Developed for operators

FOPS/ROPS-certified cabin and air-suspension seat—ensuring a huge leap forward in performance, safety, stability, and driver comfort.

Battery Safety

Reasonable layout; in line with the safety requirements of the standard GB38031; when exceptional circumstances such as collision and extrusion occur, the battery components will not have the danger of shell rupture, fire, or explosion, ensuring the safety of the driver’s life.

Online Monitoring

Big data multiple early warnings, fault prediction; client app pushes real-time information to ensure people’s and equipment’s safety.

Structure Reliability

The braking system features a dual-pipe, fully hydraulic design, ensuring a highly responsive performance with a low failure rate. The heavy-duty drive axle offers exceptional load-bearing capacity and reliable durability. The high-strength frame is built for durability, incorporating double-tapered roller bearings at the hinges for enhanced stability and performance.
