SY215E-Electric Excavators
Kies Slim
Kies SANY
  • pro-dis-icon-01
    Class
    Crawler excavator
  • pro-dis-icon-02
    Battery
    422kWh lithium iron
  • pro-dis-icon-03
    Rated power
    150 kW / 1,800 rpm
  • pro-dis-icon-04
    Standard bucket capacity
    1.1m3
  • pro-dis-icon-05
    Operating mass
    23 200 kg
TOP HIGHLIGHTS
+ Emission-free performance
+ Equipped with a lithium iron phosphate (cobalt free) battery
+ 5 years / 10, 000 hours warranty

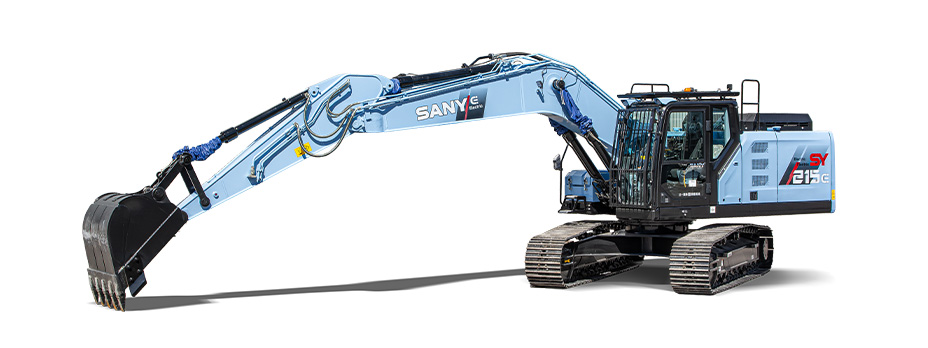

SY215E4
TECHNICAL SPECIFICATIONS
DIMENSIONS
Operating mass 23,200  kg
Standard bucket capacity 1.1
Transport length 9,910 mm
Transport width 2,980  mm
Height over cabin/ROPS 3,440 mm

ENGINE
Rated power 150 kW 1800 rpm

WORKING AREA
Max. digging depth 6,255  mm
Max. digging reach 10,280  mm
Min. swing radius 3,730  mm
Bucket digging force ISO 138  kN
Arm digging force ISO 103 kN

HYDRAULIC SYSTEM
Max. oilflow 81 l/min
STANDARD EQUIPMENT
PERFORMANCE

Equipped with a state-of-the-art battery, efficient load-sensing hydraulic system and automotive grade battery with CCS2 DC charging options the SY215E guarantees total flexibility on site.

› Fully electric with zero emissions to allow for cleaner working and increases onsite flexibility to include indoor working, out of hours projects, urban and emissions sensitive areas
› Fitted with a Lithium Iron Phosphate (cobalt free) CATL battery, therefore less toxic and more environmentally friendly
› Best in class Kawasaki pump, valve block and slew motors ensures maximum efficiency and performance
› Fully flexible, automotive standard CCS2 DC charging as standard (DC fast charge 1.5 hours)
› Work for longer with up to 6-8 hours run time off a single charge (depending on application and temperature conditions)
› 100% steel bodywork for maximum protection and reduced cost of ownership
› Twin line Aux, bi-directional pipework and quick hitch pipelines as standard for maximum versatility of attachments

SAFETY

The SY215E is equipped with a number of safety features, all included as standard.

› ROPS/FOPS certified cab for safe operation
› Optimal visibility for increased on site safety
› Battery disconnect switch and emergency stop button
› Travel alarm and green beacon to increase visibility, attract attention and ensure safety

OPERATOR COMFORT

Operators can look forward to maximum comfort and easy operation with the SY215E.

› Reduced noise levels for the operator and outside the machine to improve driver comfort and aid clearer communication on site
› Simplified charging solution for the operator with one single charge point and less cabling/equipment to carry
› Responsive and precise controls
› Ergonomic and comfortable operator’s seat with adjustable armrests
› Clear instrumentation and large high resolution 10″ colour display
› Keyless push start/stop function with password protection
› LED work lights positioned all-round the machine for maximum visibility in low light conditions

SERVICE

› Fully electric drive with a reduced number of serviceable machine parts, reduces maintenance downtime and servicing costs
› The maintenance free lithium iron phosphate battery equipped with BMS (battery management system) and thermal management ensures battery life and quality during operation and charging

COST SAVING

The new electric excavator SY215E from SANY offers a significant cost savings compared to traditional diesel-powered machines. With an annual work of 3,000 hours, a diesel-powered machine can cost around SEK 765,000 in fuel, while this electric model only costs around SEK 450,000. This means an annual saving of approximately SEK 315,000 in operating costs alone.*

(*The fuel calculation for the diesel-powered machine is based on a consumption of approximately 15 liters per hour and a fuel price of SEK 17 per liter. For the electric excavator, the cost is calculated on a consumption of approximately 50 kW per hour and a charging cost of SEK 3 per kW. )

WARRANTY

› 5-year/5000 hour warranty as standard (Terms and Conditions apply)
