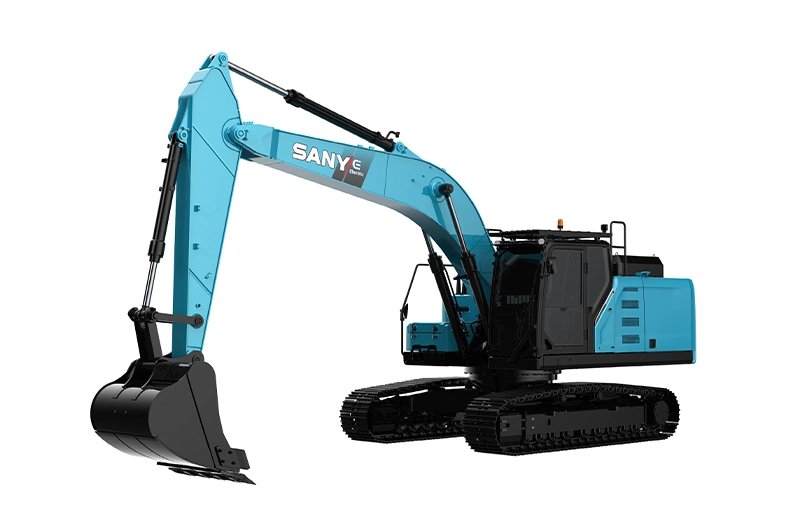

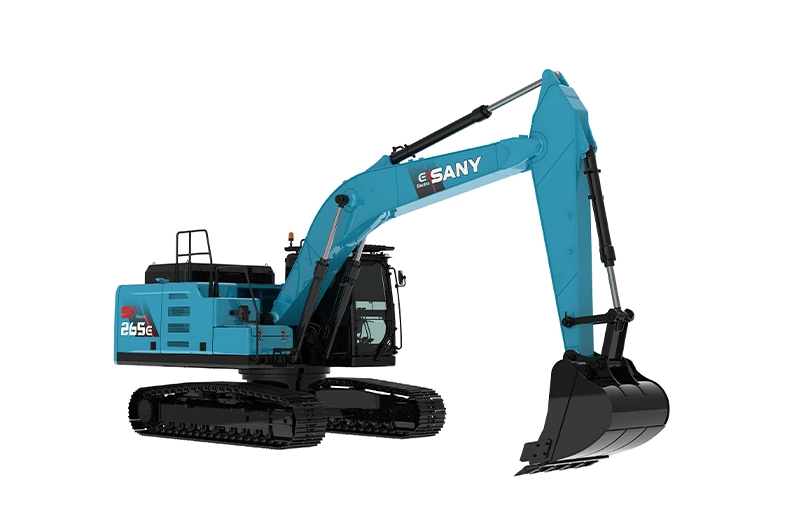

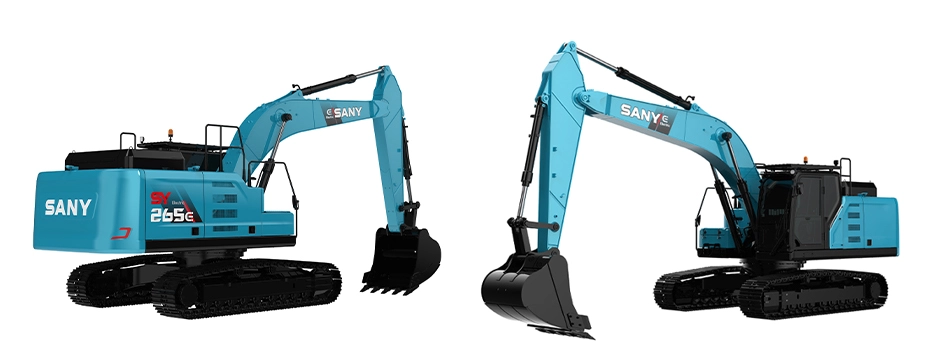

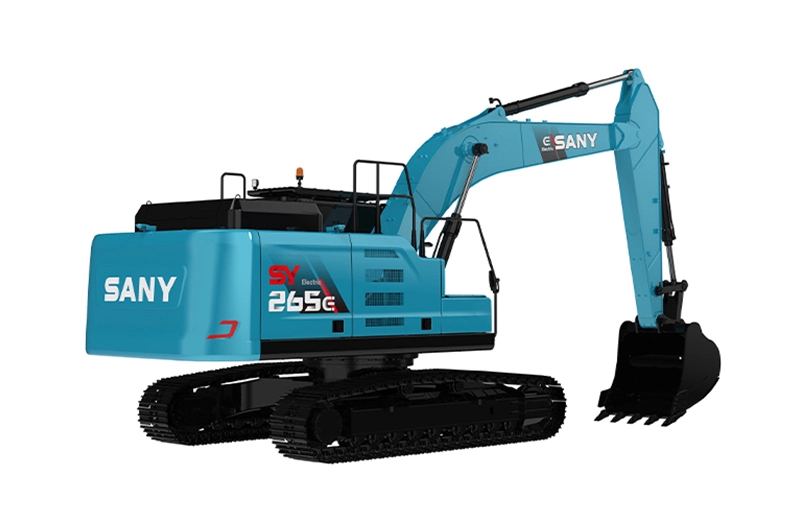

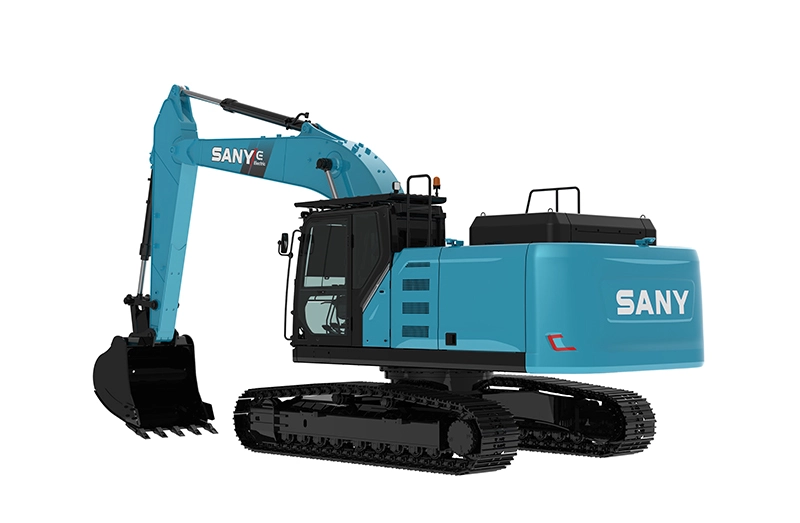

SY265E-Electric Excavators

Kies Slim
Kies SANY

Class

Electric Excavators
Capacity

600 kWh
Voltage

618V
Operating weight

26,500 kg
Track width

900 mm

TOP HIGHLIGHTS

+This powerful 26,500 kg excavator has an impressive battery capacity of no less than 600kWh. The charging capacity of the battery pack is 275 kW per hour.

+ 5 years / 10, 000 hours warranty

TECHNICAL SPECIFICATIONS

This powerful 26,500 kg excavator has an impressive battery capacity of no less than 600kWh. The charging capacity of the battery pack is 275 kW per hour. This means that the battery can be fully charged in approx. 2 hours. The SANY SY265E is very complete and offers a very high level of comfort to the operator.

DOWNLOAD THE BROCHURE

STANDARD EQUIPMENT

Version and popular options SANY SY265E

General

› Operating weight 26,500 kg
› Outer width of undercarriage 3,490 mm
› Outer width of superstructure 2.995 mm
› Track width 900 mm
› Monoboom 5,900 mm

› Arm 2,950 mm

Battery

› CATL
› Lithium Ion Long life

› Capacity 600 kWh
› Voltage 618V

Hydraulic system

› Kawasaki, axial piston pumps with variable displacement and positive flow control, max. 2×266 l/min, max working pressure 343 bar, powerboost max. 373 bar

› Additional function, AUX1, 40-70 l/min, proportionally operated

› Additional function AUX2, 50-400 l/min, proportionally operated

› Integrated quick-change function

› Pre-programmable attachments

Cab

› 10″ full colour touchscreen
› Deluxe Air Suspension and Heated Seat

› Climate control
› Windshield wiper with parallel guide

Safety

› 3 cameras (rear, left and right)
› Acoustic driving signal
› Emergency stop

Lighting

› 2 LED work lights front cab
› 2 LED work lights at the rear of the cab
› 2 LED monoboom work lights
› 1 LED work light right front superstructure

› Orange beacon

Popular options

› Track shoes chamfered

› Fixed or folding running boards

› Tool box between the tracks

› Extra work lighting

› GPS preparation; (Topcon, Trimble, Leica)

› Automatic lubrication system (Groeneveld-Beka, Wiejelo, SKF)

› Cabin pressurized filter system (BMAir, Freshfilter)

› CW40 hydraulic quick coupler (Eurosteel, GP, Beco, Verachtert, Pladdet)

› Tilt connector (Powertilt, Rädlinger)

› Tilt-of-turn connector (Engcon, Steelwrist, Rototilt, SMP)

› Customer-specific color
